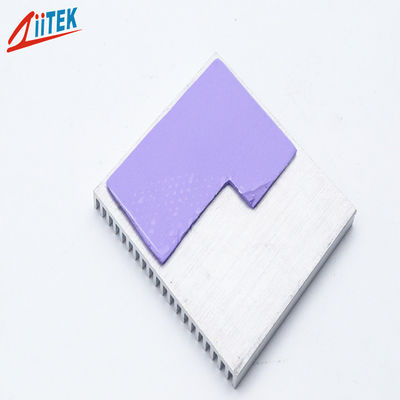

High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs

High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs
High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs

Large Image :  High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs

Product Details:
Place of Origin: Dongguan
Brand Name: Ziitek
Certification: RoHs UL
Model Number: TIF180-40-16E
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Packaging Details: 1000pcs/Bag
Supply Ability: 10000PCS/days
Detailed Product Description
Color: Violet Hardness: 35 Shore 00
Tensile Strength: 55 Psi Thickness: 2mmT
Dielectric Breakdown Voltage: >10000 VAC Thermal Conductivity: 4 W/mK
High Light:

thermally conductive pad

,

thermal conductive material

,

Thermal Conductive Pad 2mmT

High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone Thermal Pad -40 to 160℃ for IGBTs





The TIF180-40-16E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.



Ziitek TIF180-40-16E  is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF180-40-16E is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


Features


Naturally tacky needing no further adhesive coating
Thickness:
Available in varies thickness
Soft and compressible for low stress applications
large tolerance stack ups
Broad range of hardnesses available
Moldability for complex parts
Good thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized
Ambient and accelerated cure schedules
Good thermal conductive: 4 W/mK



Applications


>PCB/CPU/LED

> IGBTs
>High speed mass storage drives
>Heat Sinking Housing at LED-lit BLU in LCD
>RDRAM memory modules
>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Routers





Typical Properties of TIF180-40-16E Series
Color
Violet Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.48
20mils / 0.508 mm 0.56
Specific Gravity
2.50 g/cc ASTM D297 30mils / 0.762 mm 0.71
40mils / 1.016 mm 0.80
Heat Capacity
1 l/g-K ASTM C351 50mils / 1.270 mm 0.91
60mils / 1.524 mm 0.94
Hardness
 35 Shore 00 ASTM 2240 70mils / 1.778 mm 1.05
80mils / 2.032 mm 1.15
Tensile Strength

40 psi ASTM D412 90mils / 2.286 mm 1.25
100mils / 2.540 mm 1.34
Continuos Use Temp
-40 to 160℃ *** 110mils / 2.794 mm 1.43
120mils / 3.048 mm 1.52
Dielectric Breakdown Voltage
>10000 VAC ASTM D149 130mils / 3.302mm 1.63
140mils / 3.556 mm 1.71
Dielectric Constant
7.5 MHz ASTM D150 150mils / 3.810 mm 1.81
160mils / 4.064 mm 1.89
Volume Resistivity
7.8X10" Ohm-meter ASTM D257 170mils / 4.318 mm 1.98
180mils / 4.572 mm 2.07
Fire rating
94 V0 equivalent UL 190mils / 4.826 mm 2.14
200mils / 5.080 mm 2.22
Thermal conductivity
 4 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470



High conductivity 4w Thermal Conductive Pad 2mmT naturally tacky Silicone 55 psi Thermal Pad -40 to 160℃ for IGBTs 0

FACTORY INFORMATION:



Factory Size

5,000-10,000 square meters



Factory Country/Region

Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China



Annual Output Value

US$1 Million - US$2.5 Million





Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.




Q&A
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
