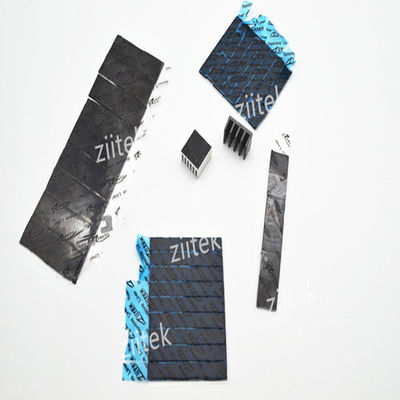

China manufacturer 1mmT thermal conductive gap filler pad 2w black -50 to 200℃ for LED-lit lamps

China manufacturer 1mmT thermal conductive gap filler pad  2w black -50 to 200℃  for LED-lit lamps
China manufacturer 1mmT thermal conductive gap filler pad  2w black -50 to 200℃  for LED-lit lamps
video play

Large Image :  China manufacturer 1mmT thermal conductive gap filler pad 2w black -50 to 200℃ for LED-lit lamps

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF140-20-01E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Supply Ability: 10000pcs/day
Detailed Product Description
Color: Black Thermal Conductivity: 2 W/m-K
Use Temperature: -50 To 200℃ Specific Gravity: 2.50 G/cc
Dielectric Breakdown Voltage: >10000 VAC Material: Silicone Pad
High Light:

thermally conductive pad

,

thermal conductive material

,

1mmT thermal conductive filler pad

China manufacturer 1mmT thermal conductive gap filler pad 2w black -50 to 200℃ for LED-lit lamps





  The TIF™140-20-01​E is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.




Features:


>  Good thermal conductive: 2 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness


Applications:


>  IGBTs
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics


Typical Properties of TIF™140-20-01E  Series
Color

black

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.57

20mils / 0.508 mm

0.71

Specific Gravity

2.50 g/cc

ASTM D297

30mils / 0.762 mm

0.88

40mils / 1.016 mm

0.96

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.11

60mils / 1.524 mm

1.26

Hardness
35 Shore 00 ASTM 2240

70mils / 1.778 mm

1.39

80mils / 2.032 mm

1.54

Tensile Strength

48 psi

ASTM D412

90mils / 2.286 mm

1.66

100mils / 2.540 mm

1.78

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.87

120mils / 3.048 mm

1.99

Dielectric Breakdown Voltage >10000 VAC ASTM D149

130mils / 3.302mm

2.12

140mils / 3.556 mm

2.22

Dielectric Constant
10.2 MHz ASTM D150

150mils / 3.810 mm

2.31

160mils / 4.064 mm

2.41

Volume Resistivity 7.3X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.51

180mils / 4.572 mm

2.58

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

2.64

200mils / 5.080 mm

2.72

Thermal conductivity
2 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
