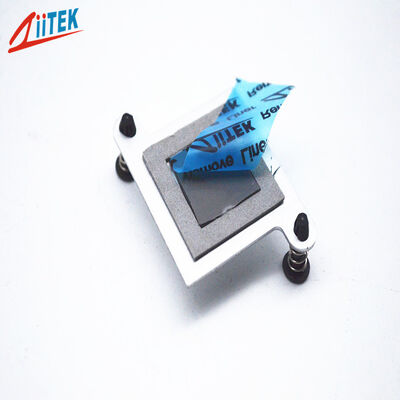

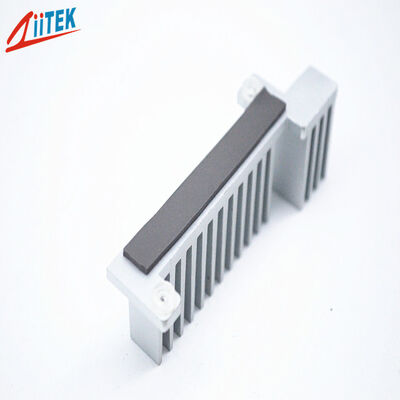

China supplier Electrical components double sided adhesive silicone 1.5 w thermal conductive pad -50 to 200℃

China supplier Electrical components double sided adhesive silicone 1.5 w thermal conductive pad -50 to 200℃
China supplier Electrical components double sided adhesive silicone 1.5 w thermal conductive pad -50 to 200℃
video play

Large Image :  China supplier Electrical components double sided adhesive silicone 1.5 w thermal conductive pad -50 to 200℃

Product Details:
Place of Origin: Dongguan
Brand Name: Ziitek
Certification: RoHs UL
Model Number: TIF180-16E
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Packaging Details: 1000pcs/Bag
Supply Ability: 10000PCS/days
Detailed Product Description
Color: Violet Hardness: 35 Shore 00
Tensile Strength: 55 Psi Continuos Use Temp: -50 To 200℃
Dielectric Breakdown Voltage: >10000 VAC Thermal Conductivity: 1.5 W/mK
High Light:

thermal conductive material

,

thermally conductive pad

,

1.5w thermal silicone pad

China supplier Electrical components double sided adhesive silicone thermal conductive pad



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



The TIF™180-16E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. It is Violet in color and is suitable for PCB/CPU/LED. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.




Features


Naturally tacky needing no further adhesive coating
Soft and Compressible for low stress applications
Available in varies thickness
Soft and compressible for low stress applications
large tolerance stack ups
Broad range of hardnesses available
Moldability for complex parts
Good thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized
Ambient and accelerated cure schedules
Good thermal conductive: 1.5 W/mK




Applications


>PCB/CPU/LED
>High speed mass storage drives
>Heat Sinking Housing at LED-lit BLU in LCD
>RDRAM memory modules
>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Routers





Typical Properties of TIF™180-16E Series
Color
Violet Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.48
20mils / 0.508 mm 0.56
Specific Gravity
2.50 g/cc ASTM D297 30mils / 0.762 mm 0.71
40mils / 1.016 mm 0.80
Heat Capacity
1 l/g-K ASTM C351 50mils / 1.270 mm 0.91
60mils / 1.524 mm 0.94
Hardness
 35 Shore 00 ASTM 2240 70mils / 1.778 mm 1.05
80mils / 2.032 mm 1.15
Tensile Strength

40 psi ASTM D412 90mils / 2.286 mm 1.25
100mils / 2.540 mm 1.34
Continuos Use Temp
-50 to 200℃ *** 110mils / 2.794 mm 1.43
120mils / 3.048 mm 1.52
Dielectric Breakdown Voltage
>10000 VAC ASTM D149 130mils / 3.302mm 1.63
140mils / 3.556 mm 1.71
Dielectric Constant
7.5 MHz ASTM D150 150mils / 3.810 mm 1.81
160mils / 4.064 mm 1.89
Volume Resistivity
7.8X10" Ohm-meter ASTM D257 170mils / 4.318 mm 1.98
180mils / 4.572 mm 2.07
Fire rating
94 V0 equivalent UL 190mils / 4.826 mm 2.14
200mils / 5.080 mm 2.22
Thermal conductivity
 1.5 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470
