0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet for Hand‐held devices

China 0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet  for Hand‐held devices  supplier
0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet  for Hand‐held devices  supplier 0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet  for Hand‐held devices  supplier 0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet  for Hand‐held devices  supplier

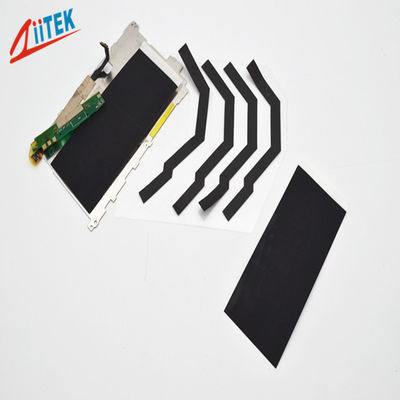

Large Image :  0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet for Hand‐held devices

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIR™250

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Contact Now
Detailed Product Description
Color: Black Density: 2.0 G/cc
Thermal Conductivity (Z Axis Direction): 6.0W/m-K Thermal Conductivity (X-Y Axis Direction): 1200 W/m-K
Thickness: 0.05 Mm

0.05 mm 1200 W/m-K TIR™250 thermal graphite sheet for Hand‐held devices



TIR™250 Series products is an ultra-thin, lightweight Graphene film with a thermal conductivity at very high level to help release and diffuse the heat generated by major components or heat sources such as CPUs..



Feature



Easy to assemble
Ultra-thin type
RoHS Compliant
Thermal Conductivity: 1200 W/mK
Reduce hot spots and protect sensitive areas
Light weight
Flexible
Ease of manufacturing for high volume production



Application



PDP,LCD TV
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar

0.05 mm 1200 W/m-K TIR™250 Thermal graphite sheet  for Hand‐held devices

Typical Properties of TIRTM250series
Product Name TIRTM217 TIRTM225 TIRTM250 TIRTM270 Test Method
Colour Black Visual
Material Graphene
Thickness 0.017 mm 0.025 mm 0.05 mm 0.070 mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% +/- 10% ASTM D751
Density 2.0 g/cc 2.0 g/cc 2.0 g/cc 2.0 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃ ~400℃ *****
Volume Resistivity 5.2X103 Ohm-meter ASTM D257

Typical Thermal Conductivit

(In Z axis)

5.0W/m-K 6.0 W/m-K 8.0 W/m-K 12 W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 1700 W/m-K 1500 W/m-K 1200 W/m-K 1000 W/m-K *****

Thermal Resistance

@100psi

0.030
(in²℃/W)
0.035
(in²℃/W)
0.045
(in²℃/W)
0.060
(in²℃/W)
ASTM D5470



Standard Sheets Sizes :

1. 185mm x 220mm 2. 195mm x 240mm 3. 220mm x 320mm



TIR™ 225 series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.
