good performance white thermal conductive adhesive TIS580-10 for LED lighting 300ml/1PC

China good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC supplier
good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC supplier good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC supplier good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC supplier good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC supplier

Large Image :  good performance white thermal conductive adhesive TIS580-10 for LED lighting 300ml/1PC

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIS580-10

Payment & Shipping Terms:

Minimum Order Quantity: 25PC
Packaging Details: 300ml/1PC
Delivery Time: 2-3 work day
Supply Ability: 1000PC/Day
Contact Now
Detailed Product Description
Packing: 300ml/1PC Appearance: White Paste
Tack-free Time: ≤20(min,25℃) Peel Strength: >3.5(N/mm)
Viscosity@25℃ Brookfield (Uncured): 20K Cps Total Cure Time: 3-7(d, 25℃)

Void Free Surface Thermal Conductive Adhesive 1.0W / mK for Power Modules / IGBT / Computer





TIS™580-10 Series is dealcoholized, 1 component, room temperature cure thermally conductive silicone adhesive. It possesses good heat conduction and adhesion towards electronic components. It can be cured to a higher hardness elastomer, leads to firmly attached to substrates resulting lower down thermal impedance. Thus, heat transfer among heat source, heat-sink, motherboard, metal casing will become effective. TIS™580-10 Series possesses high thermal conductivity, excellent electrical insulation and is ready-to-use. TIS™580-10 Series has excellent adhesion to copper, aluminium, stainless-steel, etc. As this is a dealcoholized system, it will not corrode, especially, metal surfaces.





Feature



>  Good thermal conductivity: 1.0W/mK

>  Good maneuverability and good adhesion

>  Low shrinkage

>  Low viscosity, leads to void-free surface

>  Good solvent resistance, water resistance

>  Longer working life

>  Excellent thermal shock resistance


Application

It mainly used in substituting thermally-conductive paste and pads, which currently finds in gap-filling adhesives or heat conduction between LED aluminium motherboard and heat sink, high power electrical module and heat sink. Traditional methods such as fins and screws fixing can be replaced by applying TIS580-13, resulting a more reliable gap-filling thermal conduction, simplified handling and more cost-effective.
E.g. Massive application in integrated circuits in portable computer, microprocessor, high power LED, internal storage module, cache, integrated circuits, DC/AC translator, IGBT and other power modules, encapsulation of semi-conductors, relay switches, rectifiers and transfomers
Semiconductor cases and heat sinks
Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices
CPUs and GPUs
Automatic dispensing and screen-printing
Mobile, desktop
Engine and transmission control modules
Memory modules
Power conversion equipment
Power supplies and UPS
Power semiconductors
Custom ASICS Chips
Integrated Gate Bipolar Transistors (IGBT)
Between any heat generating semiconductor and heat sink
Custom power modules
Telecommunications and automotive electronics
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp

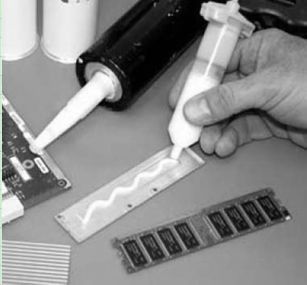

good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC



Typical values of TISTM580-10
Appearance White paste Test Method
Density(g/cm3,25℃) 1.3 ASTM D297
Tack-free time(min,25℃) ≤20 *****
Cure type(1-component) Dealcoholized *****
Viscosity@25℃ Brookfield (Uncured) 20K cps ASTM D1084
Total cure time(d, 25℃) 3-7 *****
Elongation(%) ≥150 ASTM D412
Hardness(Shore  A) 25 ASTM D2240
Lap Shear Strength(MPa) ≥2.0 ASTM D1876
Peel Strength(N/mm) >3.5 ASTM D1876
Operation temperature(℃) -60~250 *****
Volume Resistivity(Ω·cm) 2.0×1016 ASTM D257
Dielectric Strength(KV/mm) 21 ASTM D149
Dielectric Constant (1.2MHz) 2.9 ASTM D150
Thermal Conductivity W/(m·K) 1.0 ASTM D5470
Flame Retardancy UL94 V-0 E331100



good performance white thermal conductive  adhesive TIS580-10 for LED lighting 300ml/1PC
